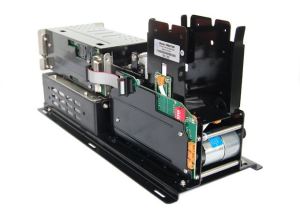

CRT-591N High-security Card Issuing Machine

CRT-591N High-security Card Issuing Machine

Product Features:
•IC/RFID and hico/loco magnetic read/write
•Pusher and hooker mechanism reliability for embossing card
•Reliable lockable stacker

    Detailed description

    Model No:CRT-591N

    Product Features:

    •IC/RFID and hico/loco magnetic read/write

    •Pusher and hooker mechanism reliability for embossing card

    •Reliable lockable stacker

    Reliable lockable error card bin

    •Automaticall locking mehamism for illegal violation

    •Self-detect for stacker removal from machine

    •On line IAP support

    Specification:


    IC card standard

    Conform with ISO 7816
    Support AT24C01、24C02、24C256、SLE4442、SLE4428、CPU T=0/T=1


    Magnetic card standard

    Physical Charactenstics:IS07810 and 7811 Standard
    Card Dimensions:IS07810ID - 1 - Type Magnetic Card Standard
    Embossing:IS07811 - 1 and IS07811 - 3 Standard
    Record Format:IS07811 - 2、IOS7811 - 4、ISO7811 - 5 and ISO7811 - 6 Standard


    RF card standard

    ISO14443-3 (Mifare One:S50、S70、UL)


    Card dimension

    Length:85.47 ~ 85.90 mm
    Width:53.92 ~ 54.18 mm
    Thickness:0.76 mm


    Dispensing speed rate

    >0.5pcs/s (only drive speed)


    Loading quantity

    Removable stacker 200pcs (0.76mm thickness cards)
    Error card bin 10pcs ± 2pcs (0.76mm thickness cards)


    Pre-empty detection

    7 ~ 50pcs ± 2pcs (Factory standard Ex-work 15pcs)

    Life time

    Magnetic head:500,000 Min
    IC contact and carrier:300,000 Min
    Transportation :500,000 Min



    MTBF

    > 100,000 hours(Only electronic components)


    Communication interface

    RS-232


    Power

    DC 24V ± 5%


    Current consumption

    Static 0.2A
    Peak 3.0A(Normal 800mA)


    Temperature

    Operation :0 ~ 50℃/0 ~ 90% RH(Non condensing)
    Storage :-25 ~ 80℃/0 ~ 95% RH(Non condensing)


    Weight

    About 4.5kg
