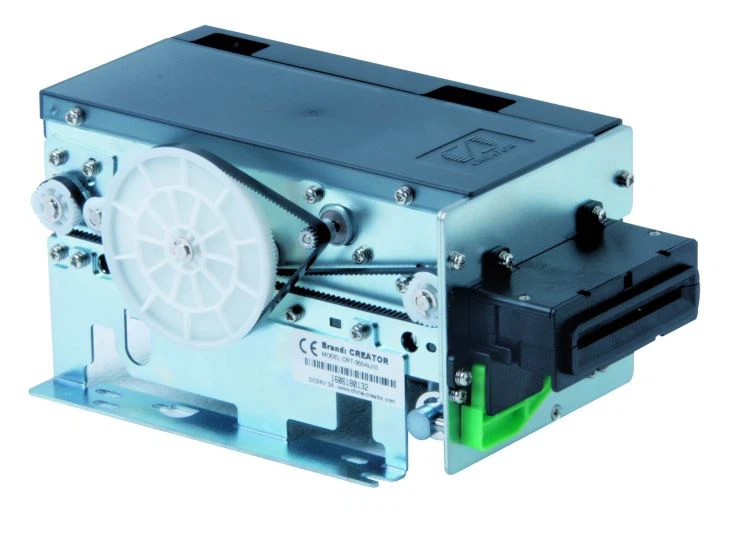

CRT-350-N ATM Card Reader

CRT-350-N ATM Card Reader

Functions:
Card operation
Mag-stripe card Read/Write
Interface

    Detailed description

    Product Features:

    •High-end ATM-oriented motor-driven card reader/writer for magnetic card(Hi-co/Lo-co), contact IC card, RFID card.

    •Support open method by magnetic card detected, IC card pre-detected or switch

    •Front/Rear card-in and card-out, jittery card control

    •WOSA complied

    •Optional anti-skimming function by electromagnetic wave interference

    •Encryption

    •Support DES,3DES,AES&Chinese commercial encryption algorithm

    •EMV 4.2 Level 1, PBOC 3.0 Level 1 certified



    Specification:

    Card type

    Magnetic Card ISO7810,ISO7811

              ---Loco writing: 300oe

              ---Hico writing(optional): 2750oe

    IC Card ISO7816-1,2,3

    Support T=0T=1 CPU Card

    Support T=0T=1 PSAM Card

    Support R/W RFID   card(Optional)

    Card dimension

    Width:53.92~54.18mm

    Length:   85.47~85.90mm

    Thickness:0.76±0.08mm

    Power supply

    DC 12V±5%

    Communication   interface

    RS-232/USB(HID)

    Operation   current

    (without   solenoid current)

    Static:250mA

    Peak:<3000mA

    Magnetic head

    1,000,000 cycles

    IC card contact

    300,000 cycles

    Drive parts

    1,000,000 cycles

    Environmental   conditions

    Operation5~50/20 ~ 80%RHNon condensing
    Storage
    -20~70/20 ~ 80%RHNon condensing

    Card-out Height

    55.5mm/45mm(optional)

    Weight

    About 1.3kg
