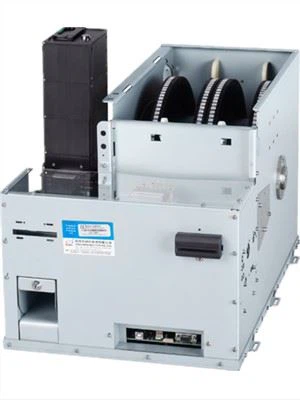

Out-Of-Order Card Dispenser CRT-591-QJ10

Support the card

Card dimensions:

Length: 85.47～85.90 mm

Width: 53.92～54.18   mm

Thickness: 0.95~1.08 mm

1. Can be customized to support magnetic card (read only), IC card/contactless card   read & write

2. 0.76mm standard card thickness can be customized

Power supply

voltage: 24V   +/-10%

current: Idle current ＜1A

Peak current: ＜10A

Operation current: ＜2A

Current surge: ＜40A

Idle power consumption: ＜24W

Working power consumption: ＜48 W

Card loading capacity

1. Disk volume: 1000pcs

2. Card dispensing cassette   capacity:150pcs(1.0mm thickness)

3.  The cards pre-empty detection:10±3(1.0mm thickness)

4. Error card bin capacity (signal bin with lock):30±3(1.0mm   thickness)

different volume of card cassette not exceed 300 pcs of cards can be customized (thickness standard of ID card)

Life and error rate

Error rate: ≦1/1000

life: 300000 times of card transportation (not include wearing parts)

note: load a card-feed a card is once

main parts life:

ID card reader: 1000000 times

Card in and out cam: 50000 times

Transporting belt: 300000 times

Motor: 300000 times

MTBF: ≧30,000 hours (Electronic parts only)

Interface

RS-232 Single-machine asynchronous half-duplex communication

Environment

Operation temperature and humidity: 5～50 ℃,  20% ~ 80%RH (non condensing)

Storage temperature and humidity: -20～70 ℃,  20% ~ 80%RH (non condensing)

Noise

≦70 db (1 meter from the machine)

Product weight

24kg (not include accessories and packages, excluding cards)

Product appearance

Refer to the appendix size outline drawing for details
