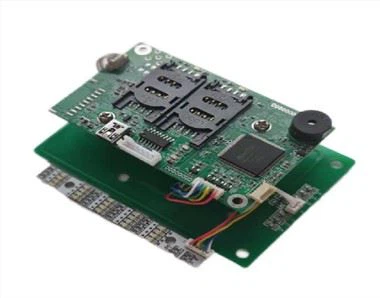

Contactless Payment Terminal CRT-603-P



Contactless payment terminal which conforms to VISA Paywave, Mastercard PayPass and EMV L1 certification. This reader module with an ISO7816 standard SAM slot supports to operate the card conforms to ISO14443-4 standard TYPE A and TYPE B, ISO14443-3 standard MIFARE series. It is widely apply in self-service vending machine, various bank card transaction terminals.



Product Feature:

Support ISO/IEC 14443 A

Support ISO/IEC 14443 B

Support ISO/IEC 18092

Support ISO/IEC 15693

Support ISO/IEC 7816

Support NXP Mifare standard

Support Sony FeliCa standard

Auto-scan contactless card with function of multi card anti-collision

Support to read / write SAM card conform to ISO7816

Recording and reading of real-time transaction data log

Support the interaction of L2 of Visa and Master card

Support on-line firmware upgrading(Manufacturers offers IAP tool

Certificate: EMV L1& L2(PayPass, PayWave) TQM



Product Specification:

Work Frequency	300 MHz
Contactless work frequency	13.56 MHz
Operation voltage	DC 5.0V
Current consumption	Idle current:150mA,work current: 200mA, peak current:250mA
Operation distance	Max：120mm  typical：60mm
Communication	RS-232 / USB interface
LED indication	Red, green, blue, orange indicators for dealing status
Buzzer warning	Active trading automatic reminder,2.4Khz  85db
Support RF card type	Mifare Classic 1K(S50)
	Type A CPU card
	Type B CPU card
Contactless L2	Conform  EMV L1 , QPBOC L2, VISA PayWave  / Mastercard PayPass kernel standard
SAM operation	Conform to ISO/IEC 7816 SAM card slot
Support systems	Windows XP,Windows 7,Windows 8,Linux
Operation Environment	-10℃ ~ 60℃,  0 ~ 95 % RH  ( no condense );humidity:5 to 95% RH (no condense) Ta <= 60℃;
Storage Environment	-40℃ ~ 70℃,  0 ~ 95 % RH  (no condense );humidity:5 to 95% RH (no condense) Ta <= 70℃;



Product Application:

Business manual management system

Self-service system

ID card validating system

Integarted card management system

Automatic fare collection syste

Payment terminal

Security terminal

Payment kiosk
