Hybrid Card Reader CRT-288-K
•With automatic card latch or unlatch for locking function
•Variety of bezel options, PSAM option
•EMV&PBOC certified

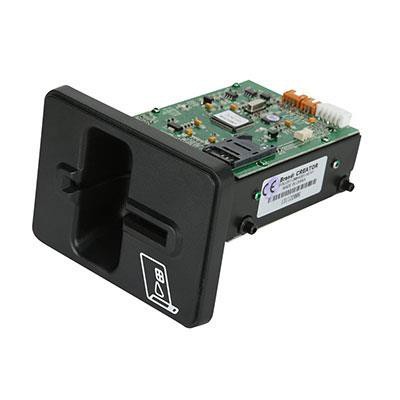

CRT-288-K is a highly reliable insertion and hybrid card reader. The machine includes advanced features such as auto latching function, PSAM slot and RF antenna. The magnetic modules are optimized for decoding of warped magnetic cards in wide range of speeds.It is widly used in many applications,including ATM and self-service terminals, KIOSK terminals and entry/exit control systems.
Hybrid card reader CRT-288-K product feature
Hybrid functions for magnetic read and IC card Read Write
Long life magnetic modules and active data uploading
Variety of bezel options,PSAM options
EMV & PBOC certified
Customization services
Controllable latching lock function to retain and release card
Hybrid card reader CRT-288-K product specification
| Card type | Magnetic card ISO7810,ISO7811 IC card ISO7816-1,2,3,4 Support T=0,T=1 CPU card Support T=0,T=1 PSAM card RFID card ISO14443 Type A & B Support Mifare 1 S50,S70,UL card,Mifare Plus, Mifare Desfire |
| Card dimension | Width:53.92~54.18mm Length:85.47~85.90mm Thickness:0.76±0.08mm |
Power supply | DC5V±5%/USB (powered) |
| Communication interface | RS-232/USB(powered) |
| Operation current | <250mA |
| Magnetic head | 1,000,000 cycles |
| IC card contact | 300,000 cycles |
| Latch mechanism | 500,000 cycles |
| M.T.B.F | >100,000hours(electronic components only ) |
| Environmental conditions | Operation:0~50℃/0~90%RH(Non-condensing) Storage -25~80℃/0~95%RH(Non-condensing) |
| Weight | About 240g |
Hybrid card reader CRT-288-K product application
Media inquiry machine
Recharging machine
Tanker
Self-service terminal
Vending machine
ATM
