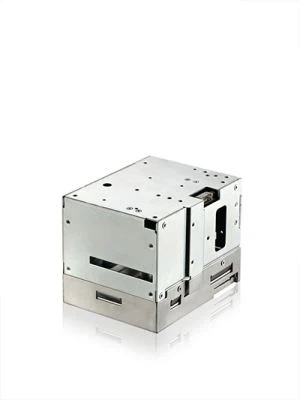

High-performance Card Dispenser CRT-591-M
High-performance CREATOR card dispenser series CRT-591-M is card issuing equipment,widely used in self-service terminals,such as parking management system, highway gate, hotel card-issuing system etc.
card dispenser CRT-591-M product features
Support card dispensing/capturing/accepting and card reading & writing
Card empty/pre-empty detection alarm
internal card accepting/capturing function
RS-232 communication interface,support inter communication among devices
Card reading/writing module supports serial port and usb communication
EMV & PBOC certified
card dispenser CRT-591-M product specifications
card type | IC card ISO7816-1,2,3,4 support T=0、T=1 CPU Card RFID card ISO14443 type A & B support Mifare 1 S50,S70,UL card,Mifare Plus, Mifare Desfire |
| card dimension | width:53.92~54.18mm,length:85.47~85.90mm |
| card thickness | 0.76mm±10% suitable for embossed card |
| communication interface | RS-232 |
| power supply | DC24V±5% |
| card stacker capacity | 150pcs/0.76mm standard card |
| load option | short card stacker 60pcs/long card stacker 170pcs extra long card stacker 300pcs |
| card volume alarm | 7~50pcs±2pcs |
| Retracted box capacity | 25pcs±2pcs(0.76mm standard card) |
| IC card contact | 500,000 cycles |
| Drive parts | 1,000,000cycles |
environmental conditions | operation: -10~60℃/0~90%RH(Non-condensing) Storage : -25~80℃/0~95%RH(Non-condensing) |
| Weight | About 2.0kg |
card dispenser CRT-591-M product applications
Parking management system
Automatic card-vending machine
Ticket-vending system
Hotel self-service card issuing
Card-issuing system
