High Quality Motor Card Reader Writer For Self-service Terminal

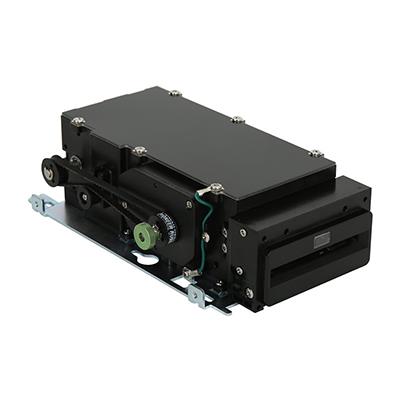

Chip card reader,motor card reader CRT-310-N for self-service terminal
motor card reader CRT-310-N Product Features:
IC/RFID card,reader/write magnetic stripe card read only
Highly reliable & endurable
Automatic shutter,unlock by being magnetic-contorlled or unlock by switch
Front/rear card-in card-out.jittery card control
Power failure protection,eject card when power down
Adapt to warped card design
Optional part PSAM board
WOSA complied
CE & EMC certified
PBOC3.0 & EMV4.1 certified
motor card reader CRT-310-N Specifications:
card type | Magnetic Card： ISO7810,ISO7811 IC Card： ISO7816-1,2,3 Mifare 1S50,S70,UL card,Mifare PLUS, Mifare defire |
Card dimension | Width:53.92~54.18mm Length:85.47~85.90mm Thickness:0.76mm±0.08mm |
Power supply | DC 12V ± 5% |
| Communication interface | RS-232 |
| Operating current | static:<150mA peak:<1500mA |
| Magnetic head | 500,000 cycles |
| IC card contact | 300,000 cycles |
| Drive parts | 1,000,000 cycles |
| Environment conditions | Operation:0 ~ 50℃/0 ~ 90%RH (Non condensing) Storage:-25~ 80℃/0 ~ 95%RH (Non condensing) |
| weight | about 410g |
motor card reader CRT-310-N applications:
ATM/CRS
Self-service terminal
Payment systems
Retail POS terminal
Traffic control system
Other ID terminal
