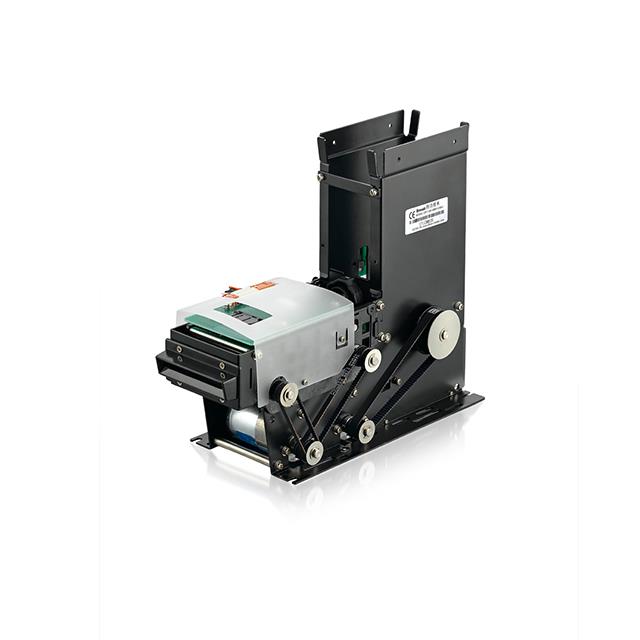

RIFD/IC Card Dispenser

CRT-591-M card dispenser supports IC/RF card R/W and issuing/collecting functions, It is widly used in  self-service terminal equipments such as parking lot management system, expressway toll gate, self-service charging system, self-service card vending terminal, bank card management system and electricity bill payment system.

Card dispenser CRT-591-M product feature

Supports ISO7816-2 contact type IC card reading/writing

Supports ISO14443-A contactless Type A/B card reading/writing

Unique dispensing wheel design: is capable of issuing various embossing cards accurately

Automatic internal adjustment: ensures accurate issuing cards of different thicknesses

Multi functions in one device: provide IC/RF card reading/writing, issuing/collecting functions and effectively saves space for the complete machine

Multiple sensors: are able to judge the card position and indicate the card status

Multiple levels of sensor circuit protection: prevents optical interference

Barcode scanner optional

PCSC protocol: is available

Card dispenser CRT-591-M product specification

Card type	IC card ISO7816-1,2,3,4 Support T=0,T=1 CPU card  RFID card ISO14443 Type A & B Support Mifare 1 S50,S70,UL card,Mifare Plus, Mifare Desfire
Card dimension	Width:53.92~54.18mm Length:85.47~85.90mm
Card thickness	0.76mm±10% (suitable for embossed card )
Communication interface	RS-232
Power supply	DC24V±5%
Card stacker capacity	150pcs/0.76mm standard card
Load option	Short card stacker 60pcs Long card stacker 170pcs  Extra long card stacker 300
Card volume alarm	7~50pcs ±2pcs
Weight	About 2kg
