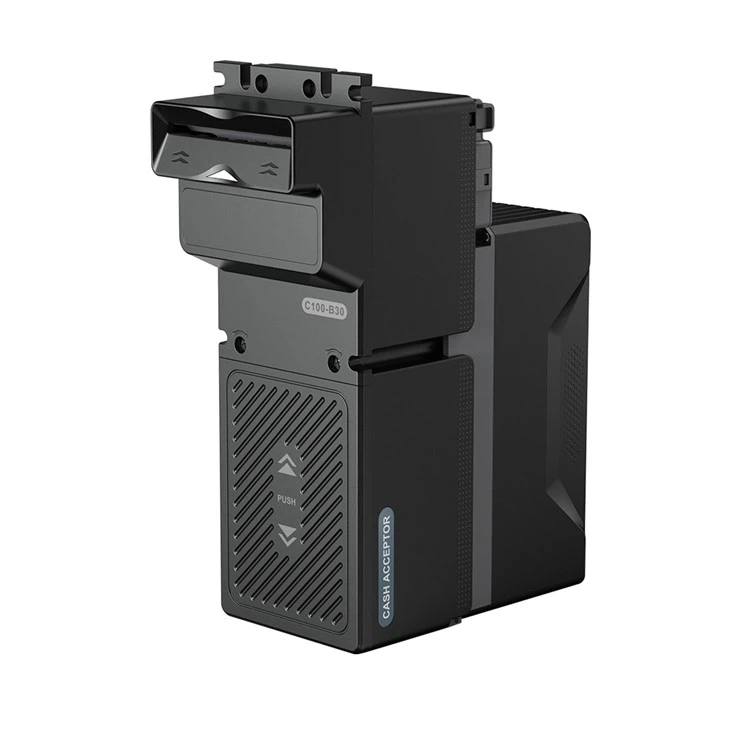

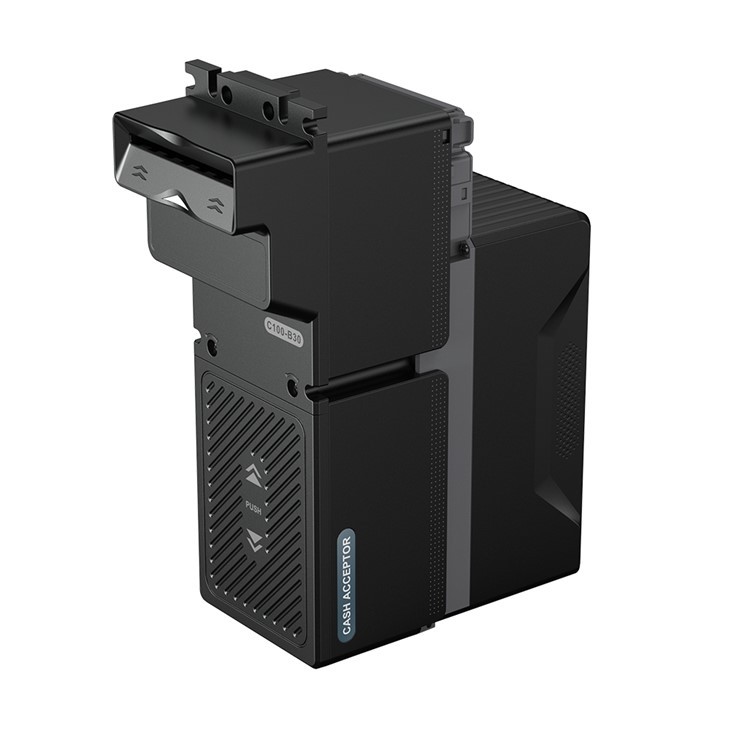

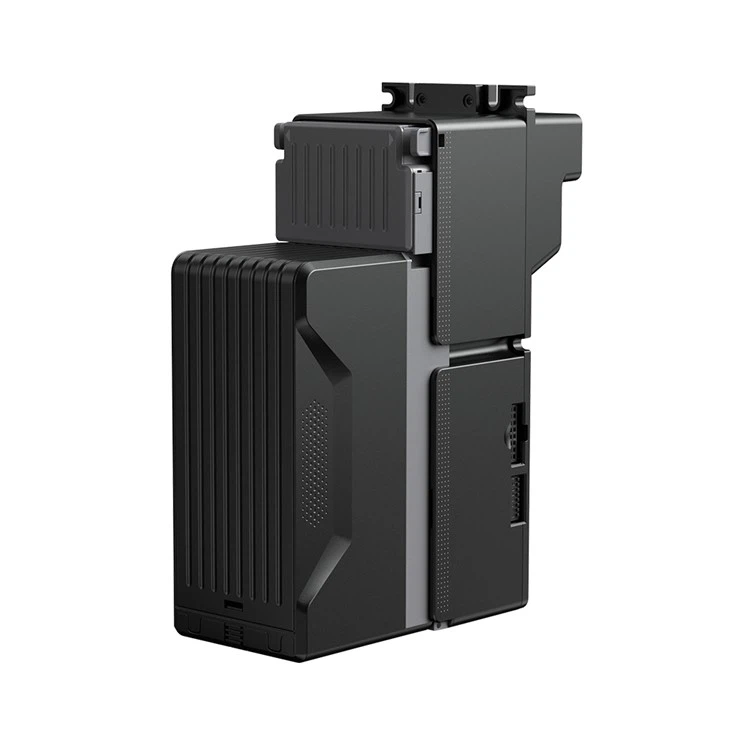

Bill Validator C100-B30
Products Description
The C100-B30 is an advanced banknote recognition system designed to enhance security and efficiency. With state-of-the-art optical sensors, it scans both sides of banknotes simultaneously and uses intelligent algorithms to detect counterfeit currency. Ideal for environments requiring secure and reliable cash handling, the C100-B30 offers robust anti-counterfeiting measures, flexible software upgrades, and easy integration.
Products features
Advanced Anti-Counterfeiting Technology
New sensor layout designed to identify various counterfeit currencies through detailed analysis of banknote security features.
Flexible Software Upgrades
Support for IAP (In-Application Programming) for seamless updates.
Anti-Fishing Measures
Sensor design prevents malicious withdrawal of banknotes, ensuring secure transactions.
Automatic Centering Function
Ensures smooth and accurate banknote handling during processing.
High-Quality Optical Sensors
Reliable sensors for detecting advanced anti-counterfeiting features.
Flexible Cash Input
Accepts bills from any position on all four sides, with no restrictions on folding or damage.
Self-Diagnosis on Startup
The machine performs an automatic check to ensure sensor reliability and system performance.
Belt-Free Design
The innovative transmission channel reduces the risk of cash jams, providing uninterrupted service.
Products specification
| Electrical Specifications |
|
Power Supply: Power Consumption: Max Power On Current: 200mA Max Lock Rotor Current: 3A Idle Current: 200mA Peak Current: 3000mA |
| Performance & Functionality |
|
Escrow: 1 bill (requires host to send escrow command) Acceptance Orientation: Four ways (lengthwise, no folding, no dog-earing) Acceptance Time: 3 seconds Validation Rate: ≥96% Sensors: Anti-fishing, highly sensitive optical sensors Belt-Free Design: Prevents cash jamming and ensures smooth operation |
| Communication & Interface |
|
Interface: RS232 Communication Protocols: MDB, CCNET, CCTALK, Pulse Serial Port Baud Rate: 9600 B/S |
| Capacity & Handling |
|
Banknote Box Capacity: 300 bills (standard) 600 bills (optional, sequential stacking) Supported Banknotes: Length: 120–160 mm Width: 60–77 mm |
| Environmental Conditions |
|
Operating Temperature: -5°C to 50°C Humidity (Operating): 0–90% RH (non-condensing) Storage Temperature: -10°C to 80°C Humidity (Storage): 0–95% RH (non-condensing, ensure drying before use) |
| Software & Updates |
| Software Update Method: IAP Online Downloading |
| Physical Specifications |
|
Net Weight: 1.0 kg (excluding packaging and accessories) Dimensions (Validator - Closed Channel State): Width: 93 mm Height: 253 mm Depth: 196.5 mm |
