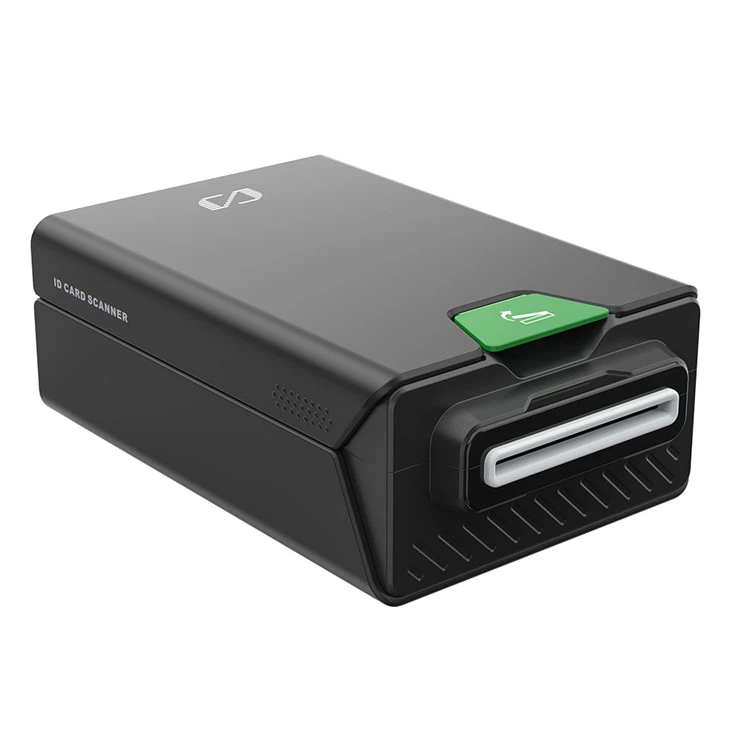

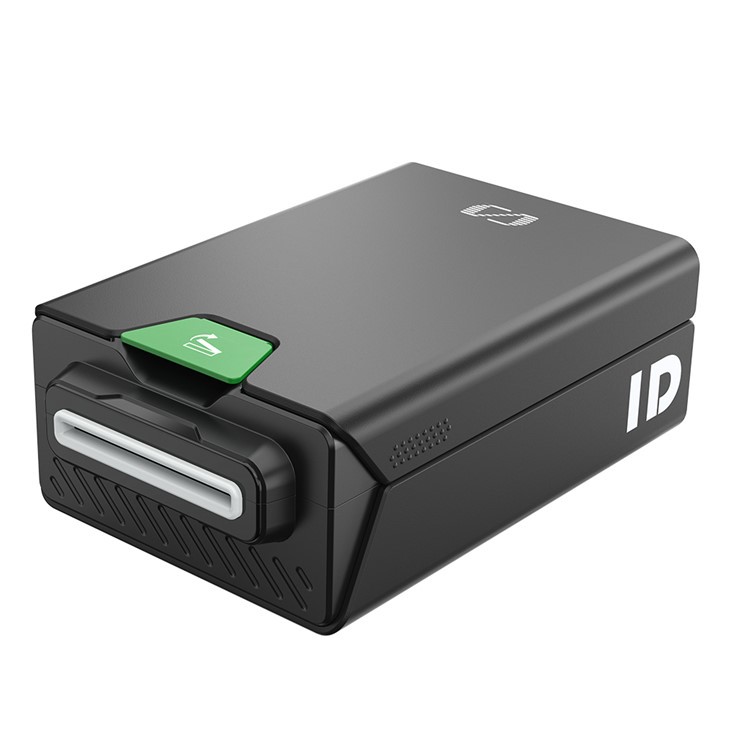

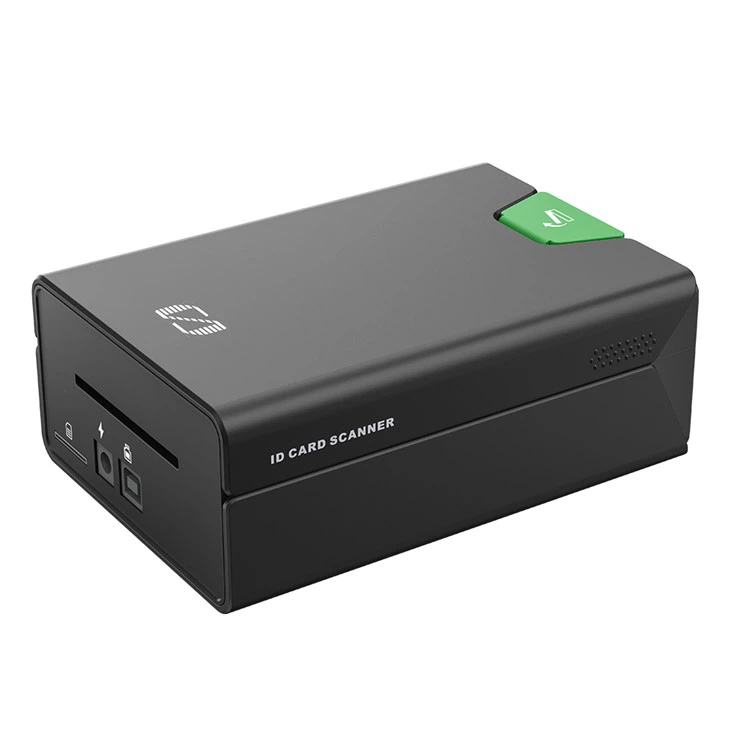

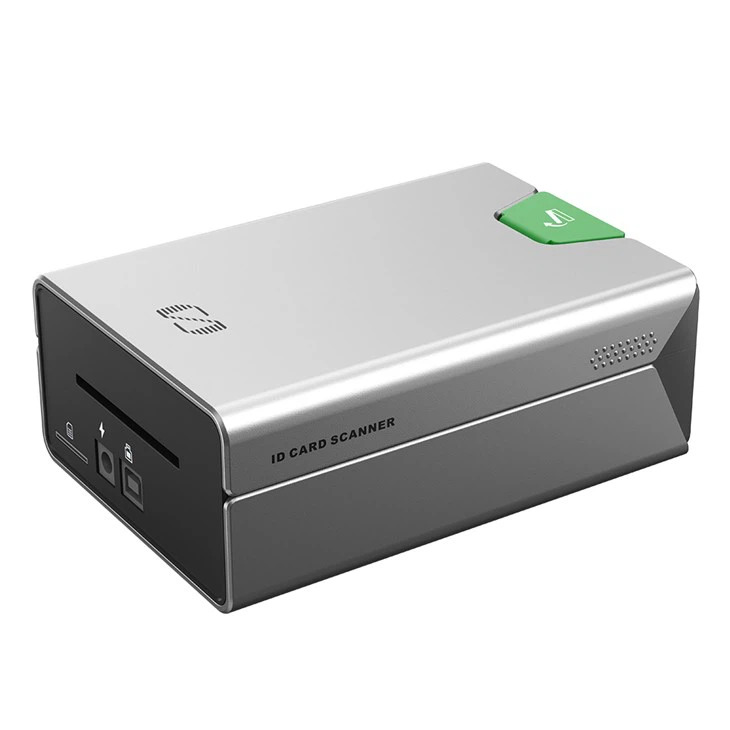

ID Card Scanner CRT-603-7200
Products Description
The CRT-603-7200 is a high-performance ID-1 card scanner that combines quick Optical Character Recognition (OCR) and RFID reading capabilities in one unit. It delivers efficient, accurate, and reliable identity verification and data capture for diverse applications and environments.
Products Features
Professional ID-1 Card Scanner
- Plastic Card Scanning: Motorized insertion/ejection for cards (0.76 1.1mm thickness)
- OCR/MRZ Reading: Reads all ICAO 9303-compliant ID-1 documents (e.g., national IDs, driving licenses)
- RFID Reading: Supports ISO/IEC 14443 A/B protocol
- Optional magnetic stripe reading
High-Fidelity Imaging
Dual-sided 600DPI RGB color scanning for precise visual/data archival
Smart User Feedback
Programmable multi-color LED + buzzer alerts for operational guidance
Easy Maintenance
Removable upper/lower covers for quick roller and CIS module cleaning
Universal Integration
Plug-and-play USB connectivity; SDK for Windows, Linux, Android
Products specification
| Card Drive Function | Motor drive mode: Support front-end card in and card out; rubber wheel drive card method |
| Scanning Function |
Sensor type: CIS (Contact Image Sensor) Support RGB/grayscale scanning Scanning speed: Image scanning speed >85mm/s; Image scanning time <3s |
| Communication |
USB 2.0 High-speed USB communication; USB-B interface, USB cable length < 2m |
| Applicable Cards |
Support scanning type: Front and back double-sided scanning Support card specifications: Thickness: 0.76mm~1.1mm Length: 84mm~86mm Width:53.6mm~54.2mm |
| Image Scanning |
Output image format: BMP, JPG format image output Image Output Processing: Support output image cropping; specific images automatically rotate positive Output image resolution: Support 600dpi image output Output picture color: Support RGB color picture output |
| Standard Card |
Read/write card: Support ISO/IEC 14443 A type card reading and writing Support ISO/IEC 14443 B type card reading and writing Other national IDs: Can be customized to support the reading of ICAO-9303 compliant IDs |
| Support System |
Windows: Windows: Windows 7/ 8/10/11, test DEMO and secondary development via SDK are available Linux: Test DEMO and secondary development via SDK are available |
|
Size |
Dimensions: 158mm×103mm×61.7mm (L*W*H) |
| Weight | Net weight: approx. 680g (excluding accessories and packaging) |
| Power Supply |
Operating Voltage: DC12V ±5% Power ripple: < 200mV Operating Current: Static Current:<300mA Operating current:<900mA Peak current:<2000mA |
