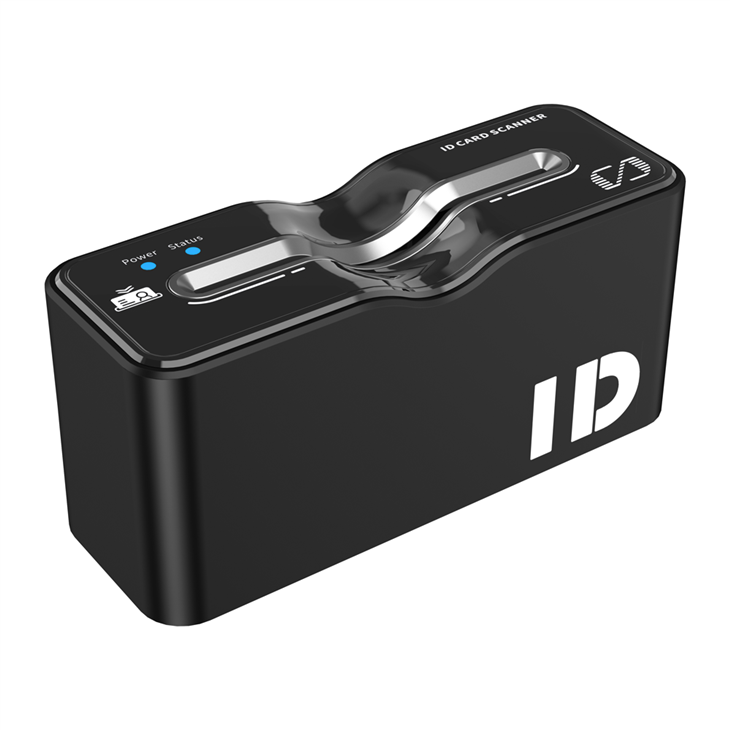

Manual ID Card Scanner CRT-603-7300



Description



CRT-603-7300 is primarily designed to verify MRZ and QR code information on identification cards. This device is widely used in finance, insurance, telecommunications, hotels, and internet cafes



Main Features



• Support thickness of 0.78mm ~ 1.2mm cards, front and back double-sided 600DPI scanning
• Card entry and card exit detection
• Support scanning output red light picture and infrared light picture
• Support unplugging card to scan pictures
• Support ISO/IEC 14443 A and ISO/IEC 14443 B protocol card reading and writing(Optional)
• Custom development is available to support chip data reading for ID cards compliant with the ICAO-9303 standard (optional)
• Can be used as a stand-alone machine directly connected to a computer on the desktop
• Support Windows, Linux, and Android system (need to be customized), through the SDK for secondary development



Specification



• Card drive function

Card insertion direction is MRZ code down

Manual card-out scanning



• Scanning function

Sensor type: CIS (Contact Image Sensor), sensor length 90mm

Supports red and infrared light

Scanning speed: Image scanning speed 80mm/s – 300mm/s

Image scanning time <3.5s



• Applicable cards

Support scanning type: Front and back double-sided scanning

Support card specifications: Thickness: 0.76mm~1.2mm

Length: 84mm~86mm



• Image scanning

Output image format: Support BMP, JPG format image output

Image Output Processing: Support output image mirroring and cropping

Output Image Resolution: Support 600dpi image output

Output picture color: Support red picture output

Support infrared light output



• ID and read/write cards (reserved)

Read/write card: Support ISO/IEC 14443 A/B type card reading and writing

Other national IDs: Can be customized to support the reading of ICAO-9303 compliant IDs



• Support system

Windows: Windows 7/Windows 8/Windows 10, test DEMO and secondary development via SDK are available

Linux: Test DEMO and secondary development via SDK are available



• Communication

Communication standard: High-speed USB 2.0

Communication cable length: USB cable length < 2m



• Power supply

Operating Voltage: DC5V ±5%

Power ripple: < 100mV

Operating Current: Static Current:<150mA

Operating current:<200mA

Peak current:300mA



• Size

Dimensions: 138mm×48mm×60mm (L*W*H)



• Weight

Net weight approx. 260g (excluding accessories and packaging)
