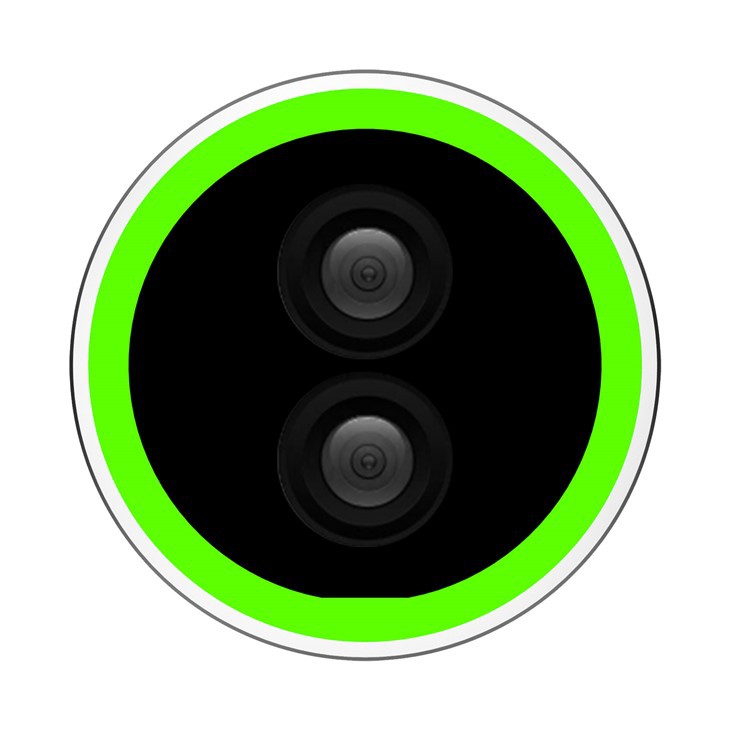

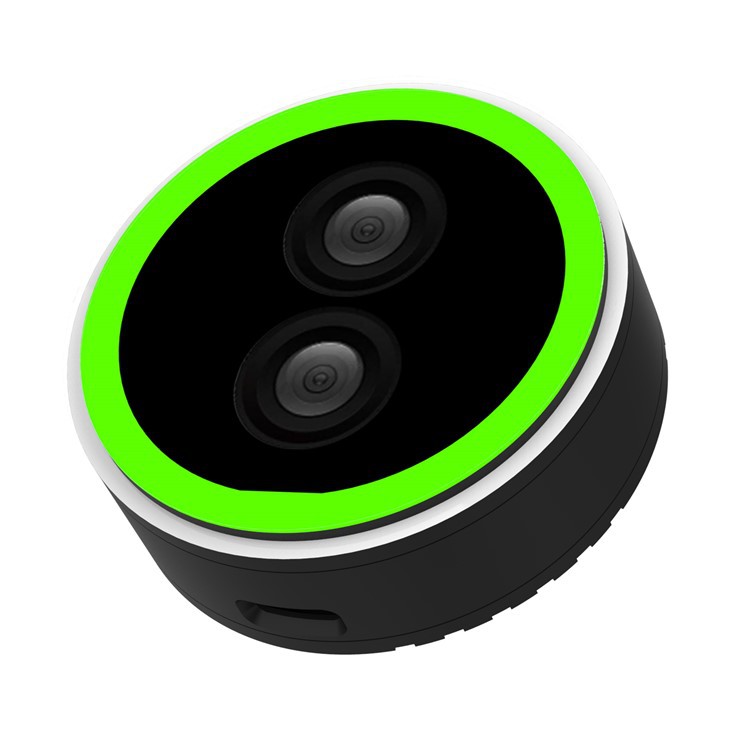

Palm Print And Palm Vein Recognition Module PRM-001-S
Products Description
The PRM-001-S enables secure, contactless authentication by simultaneously capturing and verifying both high-resolution palm prints and subcutaneous vein patterns using advanced sensors and infrared imaging. Powered by a high-performance ARM processing unit, it delivers quick identity verification in under 450ms with industry-leading accuracy (FAR<1:100M, FRR<1:10K). This versatile device, with its compact design, is particularly well-suited for integration into turnstiles, lockers, and self-service kiosks.
Products Features
Dual-modal Biometric Security
- Combines palm print + palm vein recognition
- FAR 0.000001%: Unauthorized access is virtually impossible
- FRR 0.01%: 99.99% smooth access for legitimate users
- Lower privacy exposure risks, higher security, and faster speed
Ultra-fast Authentication
- < 450ms authentication speed
- Quad-core GPU + high-performance NPU
Advanced Anti-spoofing
- Blood-flow liveness detection
- Blocks photo/replica/model attacks
- Financial-grade encrypted data transmission
- Local/server database matching with anti-fraud
High-fidelity Imaging
- RGB+IR camera with enhanced feature extraction
- Dedicated ISP processor
Touchless Operation
- Contactless palm scanning
- Auto object detection
- Auto-sensing fill-light adjustment
Industrial Resilience
- IP54 water/dust resistant
- Passive cooling (no vents)
- Low power consumption
Turnstile Access Control
Staff
Authentication
ID Verification
Kiosks
Smart Locker Terminals
Self-Checkout Stations
Products specification
| General Specs | ||
| Processor | Single-core A7 up to1.4GHz | |
| Power | USB 5V 500mA | |
| Interface | USB 2.0 | |
| Firmware Upgrade | OTA upgrade | |
| Biometric Performance | ||
| Recognition Method | Palm print + Palm vein | |
| Operating Distance | 5cm~12cm | |
| Recognition Speed | ≤450ms | |
| FAR (False Acceptance Rate) | 0.000001% (10x better than industry median 0.0001%) | |
| FRR (False Rejection Rate) | 0.01%: (Industry-optimal threshold) | |
| Special Features | 360° all-round recognition / Dark light & backlight support | |
| User Feedback | 3-color LED cue light + Fill light | |
| Imaging System | ||
| Camera | RGB+IR | |
| Exposure Control | Fast AE technology | |
| Robustness | ||
| Protection | IP54 dust/water resistant | |
| ESD Rating | ±4KV (contact) / ±8KV (air) | |
| Certification | CE / RoHS | |
| Reliability | 100,000 hrs MTBF / >5yr component life | |
