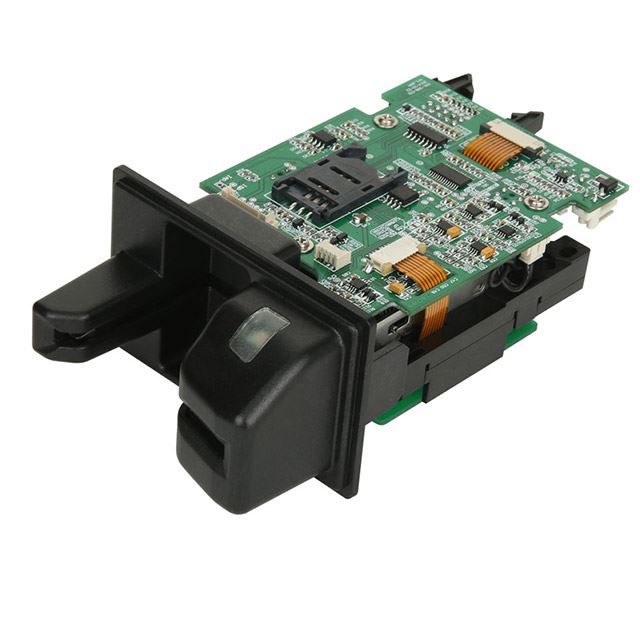

Manual Insert Hybrid Card Reader CRT-288-C
We provide various card reader writer products to the industries wherever magnetic RIFD and IC cards used such as financial systems (ATM, CD, Kiosk), retail systems, security systems, card encoder systems and etc.
CRT-288-C is a simple insertion card reader developed by the company according to market demand.convenient,practical and stable.It adopts two communication modes of RS-232/USB port.
Insertion card reader CRT-288-C product feature
Long life and highly reliable magnetic head with ceramic block implemented.
Mechanical shutter prevents dust and any foreign objects
Lock function prevents card to be pulled out during transaction.
IC/RFID card read/write,magnetic stripe card read only
Effective prevention of dust & foreign object by transparent design
EMV & PBOC certified.
Insertion card reader CRT-288-C product specification
Card type | Magnetic card ISO7810,ISO7811 IC card ISO7816-1,2,3,4 Support T=0,T=1 CPU card Support T=0,T=1 PSAM, card RFID card ISO14443 Type A & B Support Mifare 1 S50,S70,UL card,Mifare Plus Mifare desfire |
| Card dimension | Width:53.92~54.18mm Length:85.47~85.90mm Thickness:0.76±0.08mm |
| Power supply | DC12V±10% |
| Communication interface | RS-232/USB(HID) |
| Operation current | <250mA |
| Magnetic head | 1,000,000 cycles |
| IC card contact | 300,000 cycles |
| Latch mechanism | 500,000 cycles |
| M.T.B.F | >100,000 hours (electronic components only) |
| Weight | About 150g |
