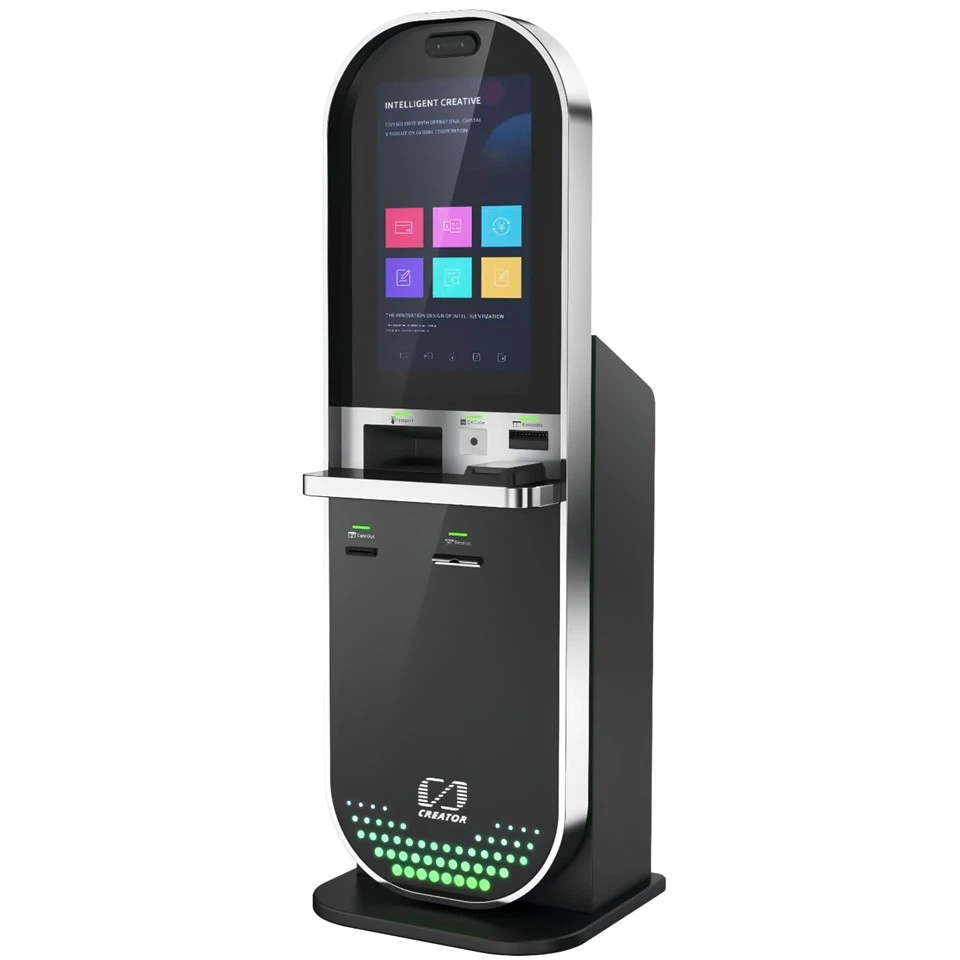

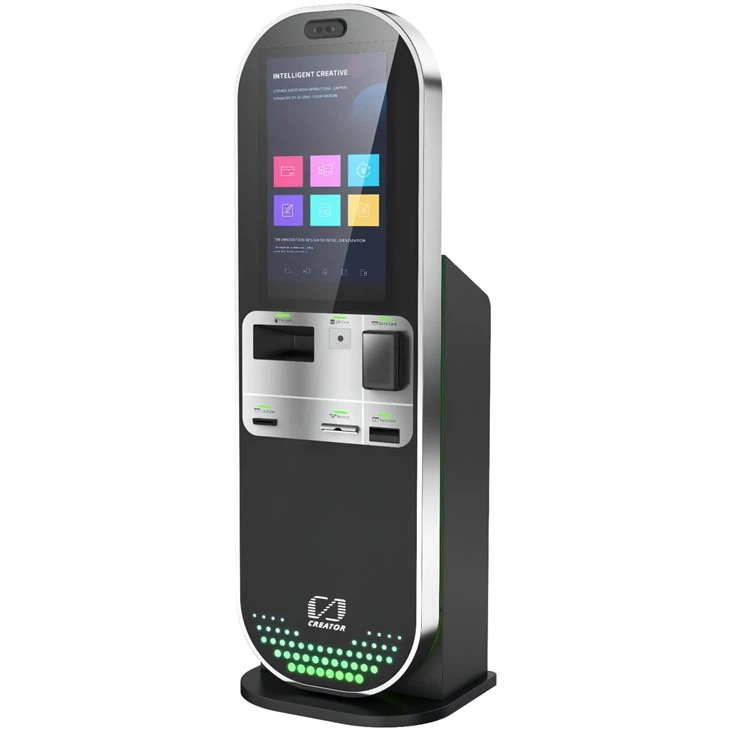

Hotel Check-in Kiosk / Telecom Card Self-service Terminal T-301-H Series 2





Description

• Hotel self-service check-in

Deployed in the hotel lobby with self-service check-in job, self-service payment, automatic check-out card, as well as self-service room renewal and check-out functions

• Telecom card issuing

Deployed in the telecommunications business hall with the functions of self-service inquiry, information release, recharge, payment, card sales, and business functions such as transaction receipt printing and invoice printing



Main Features

• Adopting a 27-inch G+G ten-point capacitor module screen, with a sensitive touch, convenient query, and smooth operation
• Wide dynamic biopsy facial recognition technology, suitable for different lighting hotel environments
• Support the issuing of large cards (86 * 54 * 0.8mm)
• Full support for voice prompt operation
• Equipped with operation prompt lights, it can guide customers to perform operations throughout the process
• Support WiFi and 4G communication methods
• Optional cash payment, meeting the needs of customers for cash payment
• Optional UPT can be installed to meet the self-service terminal unmanned payment scenario
• Optional passport for convenient identity verification of personnel from different countries
• Reserve voice assistance call function

Standard configuration	Operation system	WIN10 Multinational Language Professional Edition
	Industry PC	Intel (R) Core (TM) i5-6200u/8GB memory/storage: 128G SSD/8 USB/6 serial ports
	Touch screen display	27 inch capacitive touch/resolution 1080 * 1920/supports 10 touch points/brightness 250cd/m2/contrast 1000:1/viewing angle: 89 °, 89 °, 89 ° (up/down; left/right)
	Facial recognition camera	Equipped with backlight compensation and strong light suppression functions, supporting wide dynamic technology to resist backlight, 3 million pixels
	Banknote validating	Working voltage: DC12V ± 10% Working current: 2A Communication interface: RS-232/CCNET protocol Identifying denominations: multiple denominations Cash collection speed: approximately 2.5 seconds Cash entry method: Put money vertically on a single sheet at will Recognition rate: ≥ 98% Banknote box capacity: 1000 sheets
	Passport reader	Supports passport and IC reading, and supports OCR recognition of domestic ID cards

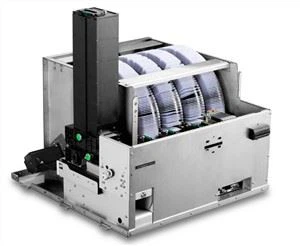

	Card issuing module	Equipped with integrated IC/RF card reading and writing operations, as well as card issuance functions Dust and foreign object resistant locking design Card specifications: 54 * 85mm, thickness 0.4-1.0mm Card loading capacity: Based on cards with a thickness of 0.76mm, the maximum loading capacity is 250pcs Equipped with error card recycling function, with a capacity of 25pcs Lifetime: ≥ 100000 card issuances Interface: RS232 Power supply: DC24V ± 10%
	Card recycling*	The device is equipped with a large capacity room card recycling bin, with a standard capacity of 250pcs (customizable capacity, only suitable for hotel scenarios)
	Barcode scanning module	USB communication, CMOS, 640 * 480, 1D/2D, white LED illumination, scanning speed: 50ms
	Thermal printer	80mm thermal printer, supporting 150mm diameter paper rolls Resolution: 203dpi Printing speed: 200mm/s (max) Printing width: 576dots (72mm) Paper width/thickness: 80 ± 0.5 mm/60-120 μ M Paper feeding method: automatic suction Paper cutting method: Automatic paper cutting, providing half/full cutting function Knife lifespan: 1 million times Support to detect the state of paper shortage
	Voice playback	Adjustable volume, speaker 3W/8 Ω * 2
	Netware	Integrated Realtek 8111H Gigabit Network Card, supports network wake-up, network PXE function
Optional modules	Banknote validating	Working voltage: DC12V ± 10% Working current: 2A Communication interface: RS-232/CCNET protocol Identifying denominations: multiple denominations Cash collection speed: approximately 2.5 seconds Cash entry method: Put money vertically on a single sheet at will Recognition rate: ≥ 98% Banknote box capacity: 1000 sheets
	Passport reader	Support image acquisition and information recognition of travel documents such as ICAO9303 standard passports and visas, including machine readable codes and other layout information
Customer supplied module	Bank card payment	Support POS and UPT optional installation
Extended functionality	Video call camera	Pixel: 2 million/Resolution: 1920 * 1080/signal-to-noise ratio: 39dB/Dynamic range: 69dB/Interface speed: 480MB/S Minimum illumination: 0.1LUTX/automatic white balance/backlight compensation
	Ultra thin voice microphone	Handle earpiece/external MIC, automatic switching between speaker and handle/speaker output 8 Ω, 1W
	Micro microphone	DSP digital noise reduction embedded active microphone
Distribution media	Card type	IC card ISO7816-1, 2, 3, 4 RFID card ISO14443 Type A ＆ B Support Mifare 1 S50, S70, UL Card, Mifare Plus, Mifare Desfire
	Card specifications	Width: 53.92~54.18 mm Length: half length 42.73~ or standard length 85.47~42.95 mm Thickness: 0.76±0.08mm
Life and failure rate		MCBF: ≥ 100,000 MTBF: Over 30,000 hours (electronic components only)
Product noise		Less than 50 dB (1 meter away from bare metal)
Power supply	Input voltage range	85∽132VAC / 170∽264VAC by switch switching
	Input frequency range	47∽63Hz
Environment	Working temperature	Working temperature: 0-45 degrees
	Working humidity	20% ~ 80%RH (No condensation)
	Storage temperature	-20℃～70℃
	Storage humidity	20%～80%RH (No condensation)
Power		Standby power: ≤ 50W Working power: ≤ 150W
Weight		Weight approximately 145kg (including wooden box packaging)
