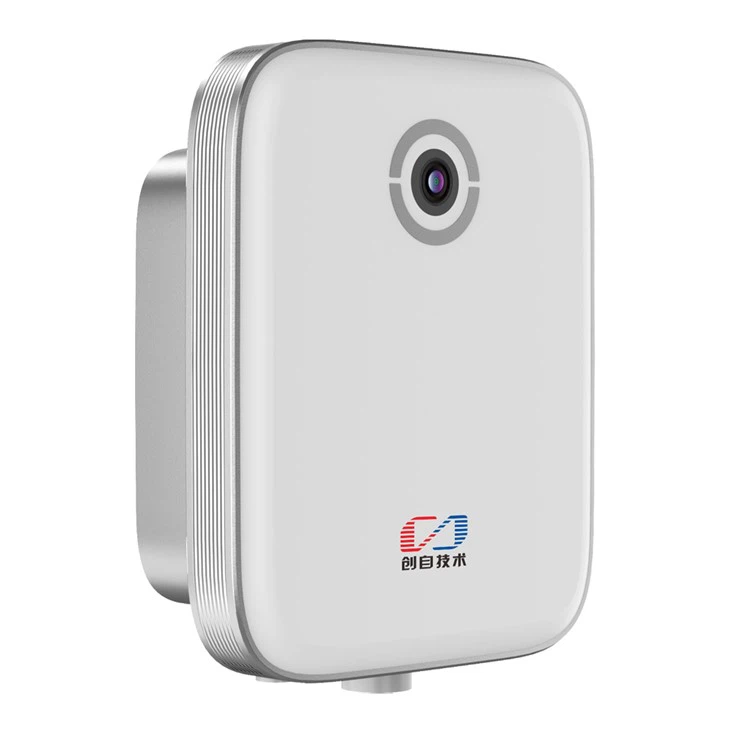

Radar-Vision Integrated System CRT-RTCOO
Products Description
This system combines millimeter wave radar and video processing with AI algorithms for all-weather, multi-target detection. It covers 6 lanes over 260m, tracking 128 targets to provide traffic flow data, speed, occupancy, queue lengths, and event alerts (e.g., illegal parking, speeding).
Main Features
Target classification
Detects vehicles (large/medium/small), non-motorized vehicles, and pedestrians
Continuous tracking
Ensures data coherence with real-time trajectory monitoring
Dynamic queue monitoring
Outputs queue length, head/tail positions, and vehicle count
Traffic statistics
Flow, speed, lane occupancy, time gaps
Event alerts
Illegal parking, lane violations, speeding, queue overflow
All-weather operation
Unaffected by light, dust, rain, or ha
Products specification
| Detection Range | 260m |
| Detection Lanes | 6 |
| Max Targets Tracked | 128 |
| Update time | 50ms |
| Speed | -225~225km/h |
| Vision | Radar and vision fusion, camera with 8-megapixel resolution |
| Information |
Trajectory: Position, Speed, Type Traffic Flow: Volume, Speed, Occupancy, Queue Length Event: Abnormal Parking, Speeding, Lane Change Visualization: Video Stream, Object Features |
| Temperature | -40～+85℃ |
| Humidity | 0~95% |
| Mounting Height | 6-8m |
| Protection | IP67 |
| Power | 24V DC <12W |
| communication | RJ45 |
| MTBF | 100000h |
Diagram
